PANELS
Backlit panels
3 Models / Sizes

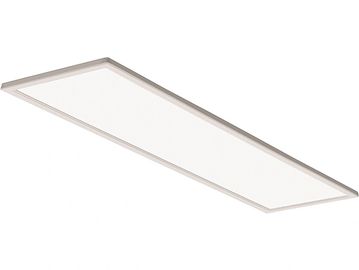

2x4 Backlit Panel
- Minimal fixture depth ideal for shallow plenum
- Simple switch to adjust lumens and CCT on site as desired
- Tamper proof cover enables DLC rebates at all wattage levels
- Continuous row flex accessory enables continuous runs with a single feed point
- 5 year warranty
Power Voltage:
25-30-35-40-50W tunable AC 100-347V
CCT
300K-4100K-5000K tunable
Efficiency:
130LM/W
LED Source:
SMD2835 LED
Beam Angle
180
Certification:
DLC ETL cETL FCC CE ROHS
DLC Code:
PH13VFTI
Order Code:
EGT-PL2-2x4-MW-MV-MCCT
1x4 Backlit Panel
- Minimal fixture depth ideal for shallow plenum
- Simple switch to adjust lumens and CCT on site as desired
- Tamper proof cover enables DLC rebates at all wattage levels
- Continuous row flex accessory enables continuous runs with a single feed point
- 5 year warranty
Power Voltage:
20-25-30-36-40W tunable AC 100-347V
CCT
300K-4100K-5000K tunable
Efficiency:
130LM/W
LED Source:
SMD2835 LED
Beam Angle
180
Certification:
DLC ETL cETL FCC CE ROHS
DLC Code:
PWLWT0HB
Order Code:
EGT-PL2-1x4-MW-MV-MCCT
2x2 Backlit Panel
- Minimal fixture depth ideal for shallow plenum
- Simple switch to adjust lumens and CCT on site as desired
- Tamper proof cover enables DLC rebates at all wattage levels
- Continuous row flex accessory enables continuous runs with a single feed point
- 5 year warranty
Power Voltage:
20-25-30-36-40W tunable AC 100-347V
CCT
300K-4100K-5000K tunable
Efficiency:
130LM/W
LED Source:
SMD2835 LED
Beam Angle
180
Certification:
DLC ETL cETL FCC CE ROHS
DLC Code:
PZRZCF3T
Order Code:
EGT-PL2-2x2-MW-MV-MCCT
Our LED Panels are built with aluminum housing and a unique thermal design for the best heat dissipation possible.
